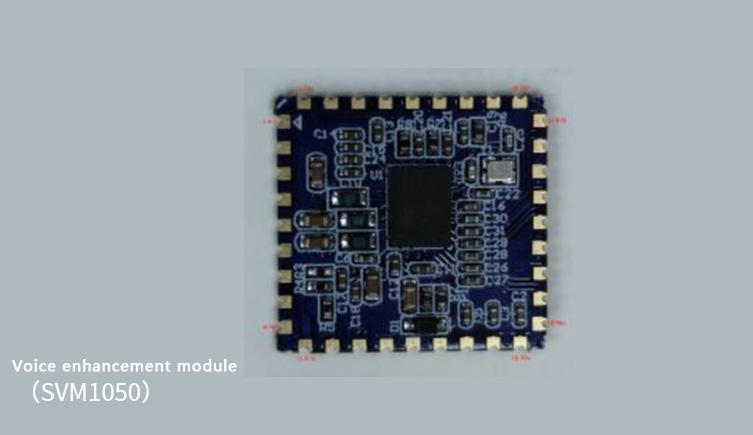

SVM1050 Single/Dual Microphone Voice Enhancement module
SVM1050 voice enhancement module is a low-cost software and hardware integration solution launched by Sound+ for such application scenarios as voice noise reduction and echo cancellation.

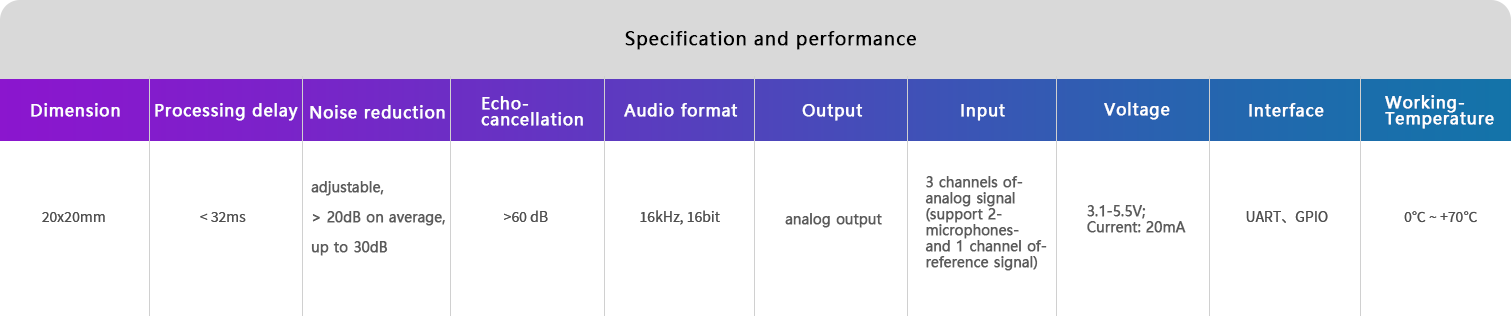

Technical composition & specification
Voice enhancement module supports 3 analog signal inputs, 1 differential output (can directly drive the speaker), a set of I2C interfaces, and a set of UART; voltage: 3.1-5.5 V; module size: 20.0 x20.0x4mm. The module has built-in algorithm modules such as AEC, dual-mic beam forming, AI noise reduction and DRC.
![](/en/uploads/images/2024-05-18-18-29-11.png)
Advantages
-
01
Simple interface
-
02
Algorithms can be flexibly configured
-
03
Excellent noise reduction performance
-
04
Support online data acquisition and debugging
-
05
Algorithm parameters and interfaces support adaptation and customization
-
06
Provide technical support on software and hardware
Applications
Access control call system, walkie-talkie, smart home, voice recorder, karaoke, onboard call recording system, broadcast intercom/monitoring system, security call recording products
![](/uploads/images/2024-02-29-21-37-27.jpg)
Access control call system
![](/uploads/images/2024-02-29-21-37-33.jpg)
Smart home
![](/uploads/images/2024-02-29-21-37-43.jpg)
On-board call recording system
Mass production cases
-

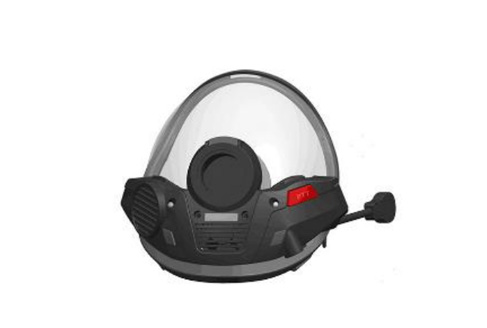

Firefighter helmet
-

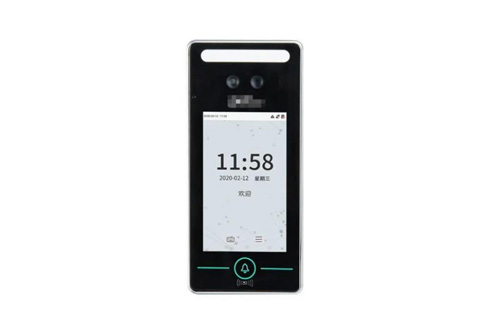

Smart attendance and access control machine
